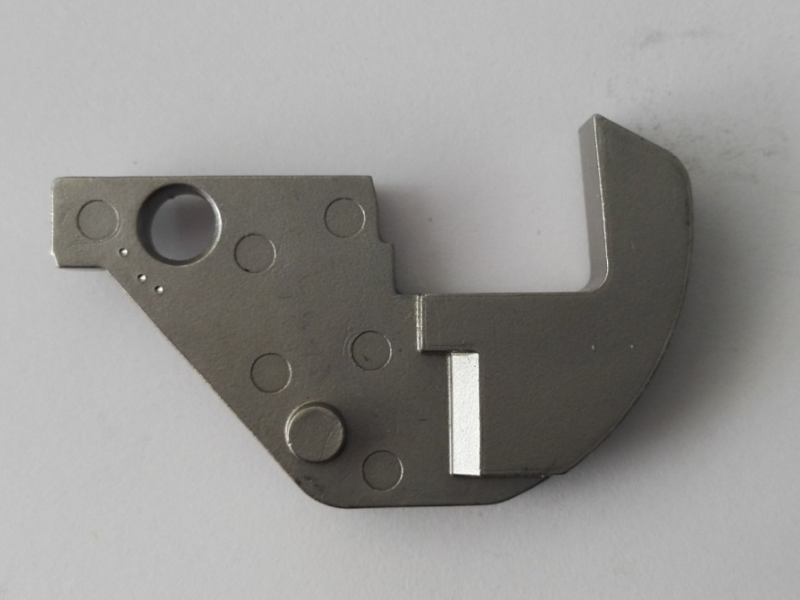

Lock MIM Parts Lock Filling Plate

Product Presentation

Brand name	OEM & ODM
Product type	Lock Parts
Product Model	HBMIM-001B
Material	Stainless steel 304,316L,17-4PH,TI,MIM4605
Post-Sintering	Polishing,Wire-drawing,Sandblasting,Plating,Coated,etc.
Size	Custom
Tolerance	10mm±(0.02-0.04)mm
Weight	≤200g
Forming Method	Metal Injection Molding
Sintering method	Catalyze degrease sintering
Sintering environment	Vacuum
Mold material	Steel
Application	Lock industry
Shape	Custom
OEM	Accept
QC system	100% inspection before shipment
Payment terms	T/T at sight, Paypal, Western Union,etc.
Lead time	25-30 working days
Supply capability	500000 Piece Per Month
Packaging	PP bag / Anti-static film / anti-static plastic disc

Why Choose MIM?
♦ Machining free (achieve sharp angle of R ≤ 0.1mm; Depth of Parallelism ≤ 0.02; Ra ≤ 1.6μm; tolerance in ±0.025mm-±0.05mm)
♦ Excellent geometrically complexity ( achieve a hole of 0.4mm, thin wall of 1mm )
♦ More than 98% of material utilization rate
♦ Part-to-part uniformity
♦ More than 95% of theoretical density, and its performance is comparable with forging parts.

There are various types of MIM raw material with it own special characteristics to choose from, it could help to meet your requirements from carbon iron to stainless steel.Harber-MIM is a export and experienced customed MIM factory in China.

There are various kinds of raw material to choose from as below, we have expert experiences on producing and controlling quality:
